Phoenix Max

The Phoenix Max is TOPDON’s newest cutting-edge automotive diagnostic scanner. With a 13.3 inches screen, this all-in-one tool offers a wide array of functionalities that will expand any technician’s capacity to complete even more jobs.

Features

Get More Done

• Automotive and Heavy-Duty coverage in one tool, it just makes sense. 2 years of automotive and 1 year of HD updates keep supporting the latest models.
• Heavy-Duty Cables and Software are optional, sold separately.

Cloud-Based Programming and Coding

• Elevate your game with Cloud-based programming for brands like Benz, BMW, Volkswagen, Audi, Skoda, Seat, Porsche, Land Rover, Jaguar, Hyundai, Nissan, Subaru, Renault, and online coding for Audi, BMW, and Porsche.

The Phoenix MDCI Pro Has You Covered

• TOPDON’s Phoenix Max comes with the Phoenix MDCI Pro, a VCI that supports J2534, DoIP, CanFD, D-PDU, and RP1210 protocols. This MDCI Pro’s unparalleled coverage allows you to offer OE-level services to newer and more modern vehicles. With the Phoenix MDCI Pro, you will never be forced to outsource!

Big Display for Big Productivity

• Featuring a large 13.3”, 1920 x 1200 display, 8G RAM/256G ROM, and utilizing Android 9, the Phoenix Max will take on whatever you throw at it with fast and smooth operation.

All Day Battery Life

• Convenient docking station included so your Phoenix Max is always charged and within reach.
• The 18600 mAh, 3.8V battery will power through the day, just like you. 8 hours of run time will ensure you’re never down.

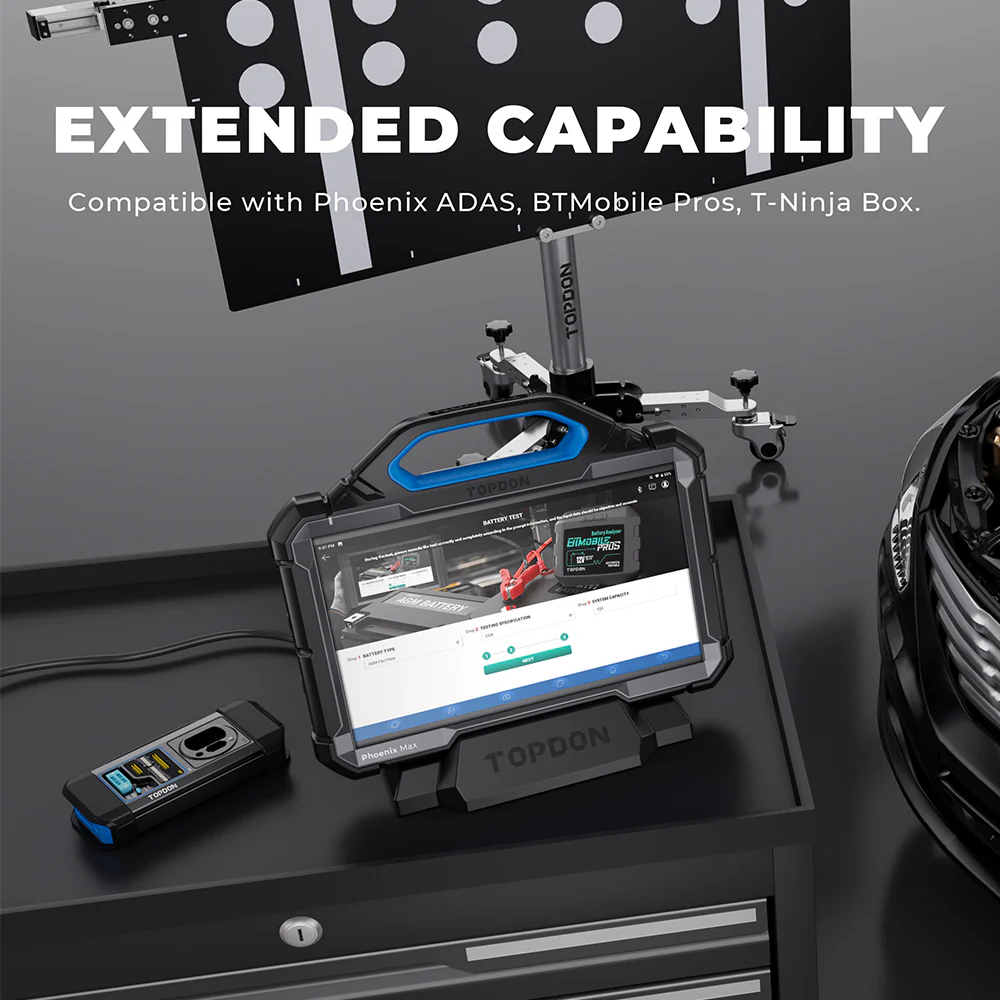

Extended Capability

• Compatible with Phoenix ADAS, BTMobile ProS, T-Ninja Box.

Explore More Features On the Phoenix MAX

• 41 maintenance services for mainstream vehicle models.
• Topology map granting a clear picture of relational vehicle systems and status.
• Full-system diagnostic (Engine, Transmission, Airbag, ABS, ESP, TPMS, Immobilizer, Gateway, Steering, Radio, Air Conditioning) for over 200 vehicle models.
• 5 Full-system diagnostic basic functions: access ECU info, read DTCs, clear DTCs, read data stream, active test.
• AutoVIN for automatic vehicle identification.
• Guide Function for VAG.
• The FCA Secure Gateway Module(SGW) unlocks the FCA vehicle, in order to perform functions such as clearing DTCs, bi-directional testing and calibration.
• Data stream recording for users to play back diagnostic activities.

Specifications

Phoenix Max:

• Display: LCD 13.3 inches, 1920 x 1200 pixels

• CPU: 8-Core Processor, 2.0 GHz, Android 9.0

• RAM: 8G

• ROM: 256G

• Battery: 18600 mAh / 3.8V

• Operating Voltage: 9~18V

• Storage Temperature: -20℃~60℃（-4℉~140℉）

• Working Temperature: 0℃~50℃（32℉~122℉）

• Product Dimensions: 364 x 285 x 82mm (14.30 x 11.20 x 3.20 inches)

• Package Dimensions: 673 x 474 x 201mm (26.50 x 18.66 x 7.91 inches)

• Net Weight: 3.18kg(7.0 lb)

• Multilingual Support: 24 Languages
  English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Korean, Finnish, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Czech, Danish, Norwegian

Phoenix MDCI PRO:

• CPU: Cortex-A7 + Cortex-M7, Dual Processor

• Operating System: Linux

• RAM: 256M

• ROM: 8G

• Display: TFT, 3.97 inches, 320 x 480 pixels

• Wi-Fi: 2.4GHz/5GHz, Dual Band

• Working Temperature: 0℃~50℃（32℉~122℉）

• Operating Voltage: DC 9~36 V

• Dimensions: 196 x 135 x 42.8 mm（7.72 x 5.31 x 1.69'')

• New Protocols Supported: J2534, CAN FD, DOIP, D-PDU, RP1210

Packing List

• Phoenix Max

• Base

• Phoenix MDCI PRO

• Phoenix Scope (Only included if purchased with scope)
• MDCI PRO CAB Male to Diagnostic Cable

• Clipper Cable ( LCDSS )

• Fuse ( AC250V/5A, φ5x20mm ) * 4

• MDCI PRO CAB Type A to B Cable

• Cigarette Lighter Cable

• Fuse ( AC250V/5A, φ6x30mm ) * 2

• BZ-38 ( BENZ )

• TA-17 ( TOYOTA )

• B-20 ( BMW )

• HA-3 ( HONDA )

• OBD I Adaptor

• Charging Cable

• TA-22 ( TOYOTA )

• G/V-12 ( GM/VAG )

• CR-6 ( CHRYSLER )

• NN-14+16 ( NISSAN )

• M/H-12+16 (MITUBISHI/HYUNDAI)

• Adaptor

• AC Cable (US）

• Mini-HDMI to HDMI

• 3-in-1 Charger (Matched with U.S., U.K. and Europrean plugs)

• FT-3 (FIAT）

• AC Cable (EU)

• AC Cable (UK)

• Type A USB to Type C

• Ethernet Cable
