TC004 Mini

Introducing the TC004 Mini, a compact, entry-level handheld thermal camera packed with rich features. With advanced TISR image enhancement technology, it upscales resolution from 128x128 to 240x240, ensuring crisp, detailed thermal images. Lightweight and user-friendly, it allows even beginners to quickly and accurately identify problems with ease. Ideal for diagnosing HVAC issues, overheating components, electrical faults, or leaks.

Features

More Details, Better Results

• The TISR technology takes you from 128x128 to a crisp 240x240 resolution. Combine that with a fluid 25Hz refresh rate, and you'll catch every detail with ease, making your thermal tasks faster and simpler.

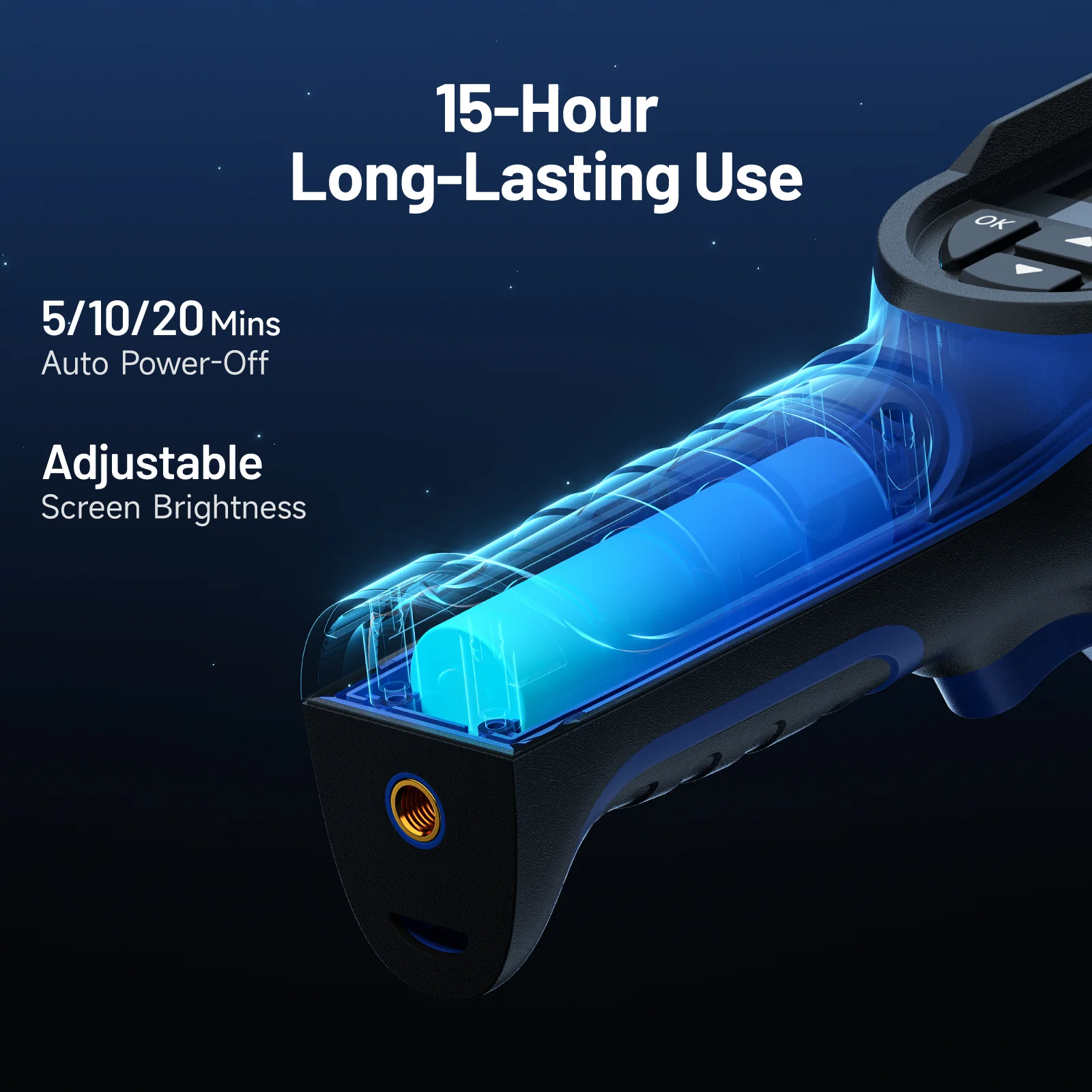

All-Day Power

• The built-in 2,900mAh battery, combined with customizable auto-off options (5, 10, or 20 minutes), provides up to 15 hours of runtime, allowing you to handle more tasks without frequent recharging.

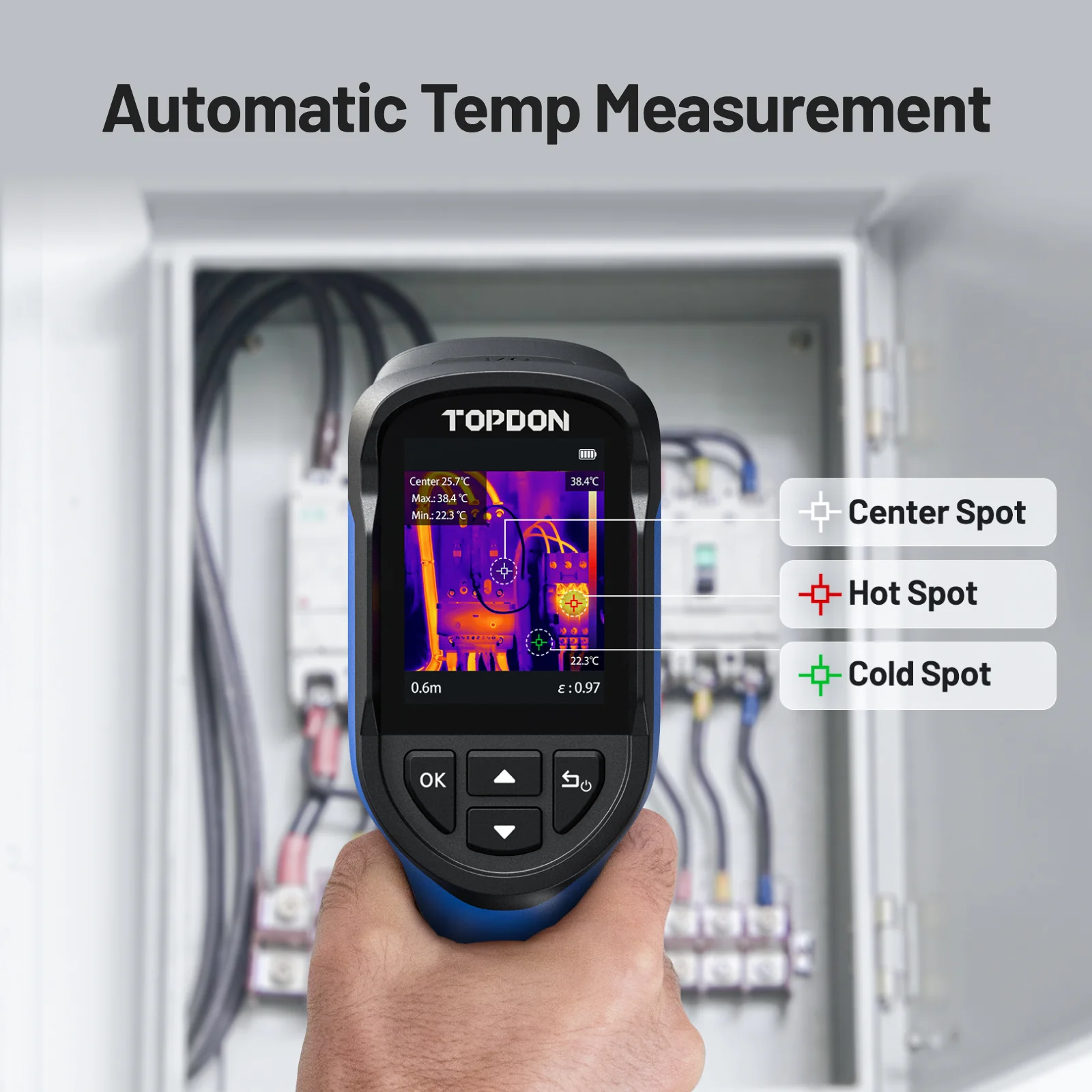

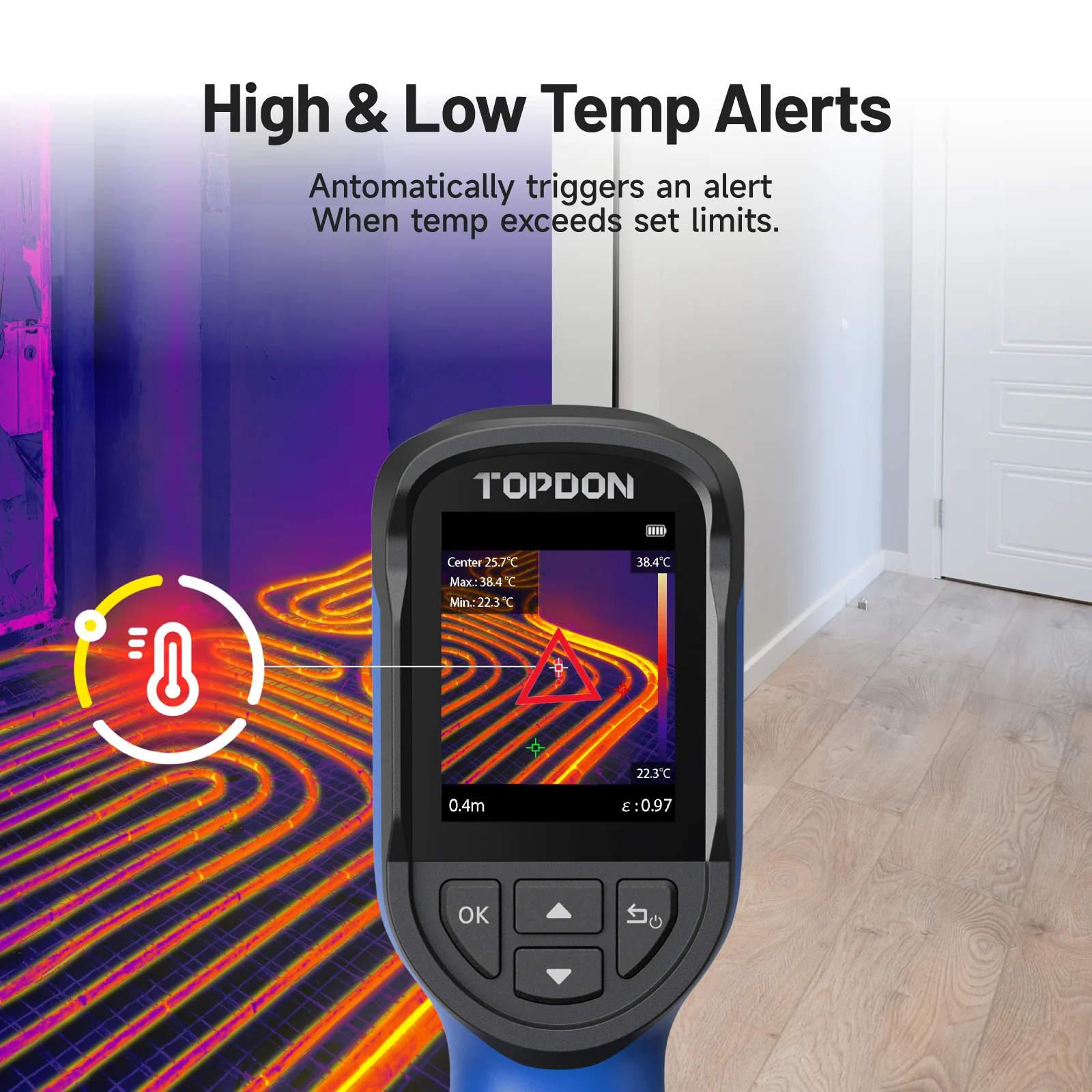

Auto Detection with Smart Alerts

• Effortlessly identify anomalies with automatic detection of max, min, and center temperature spots. When temperatures exceed your preset limits, the device triggers a visual warning and captures a photo, making it easier to locate and document issues quickly.

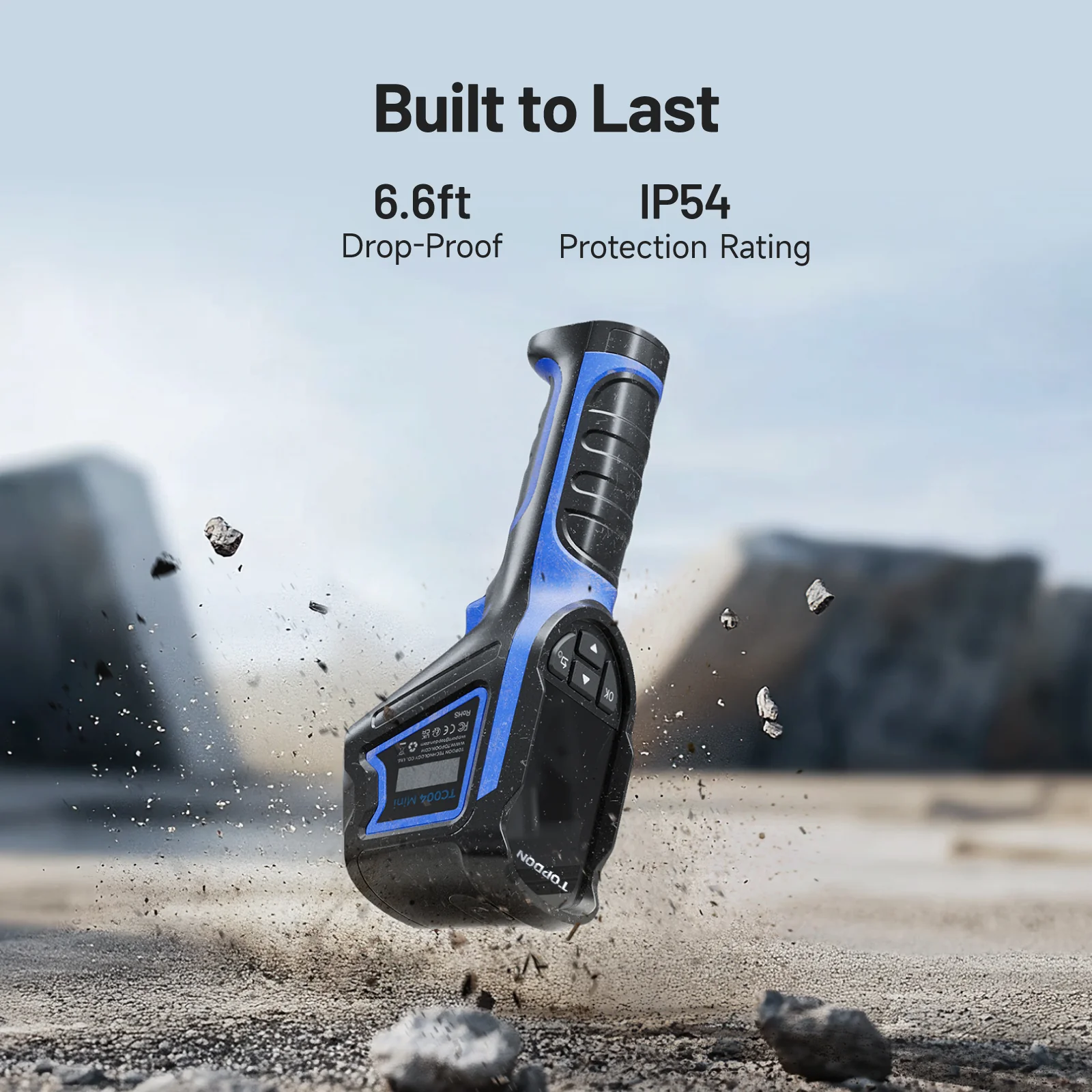

Built to Last

• Handles 6.6ft (2m) falls with ease and is IP54-rated for tough environments.

Your Compact Go-to Tool

• Lightweight and ergonomically designed for a comfortable grip—take it anywhere.

Wide Temp Range with Accuracy

• Covering -4°F to 842°F (-20°C to 450°C) with accuracy up to ±3.6°F (±2°C), it is perfect for detecting mechanical and electrical hotspots in industrial settings. Its high sensitivity of <40mK helps to identify insulation and moisture issues in buildings.

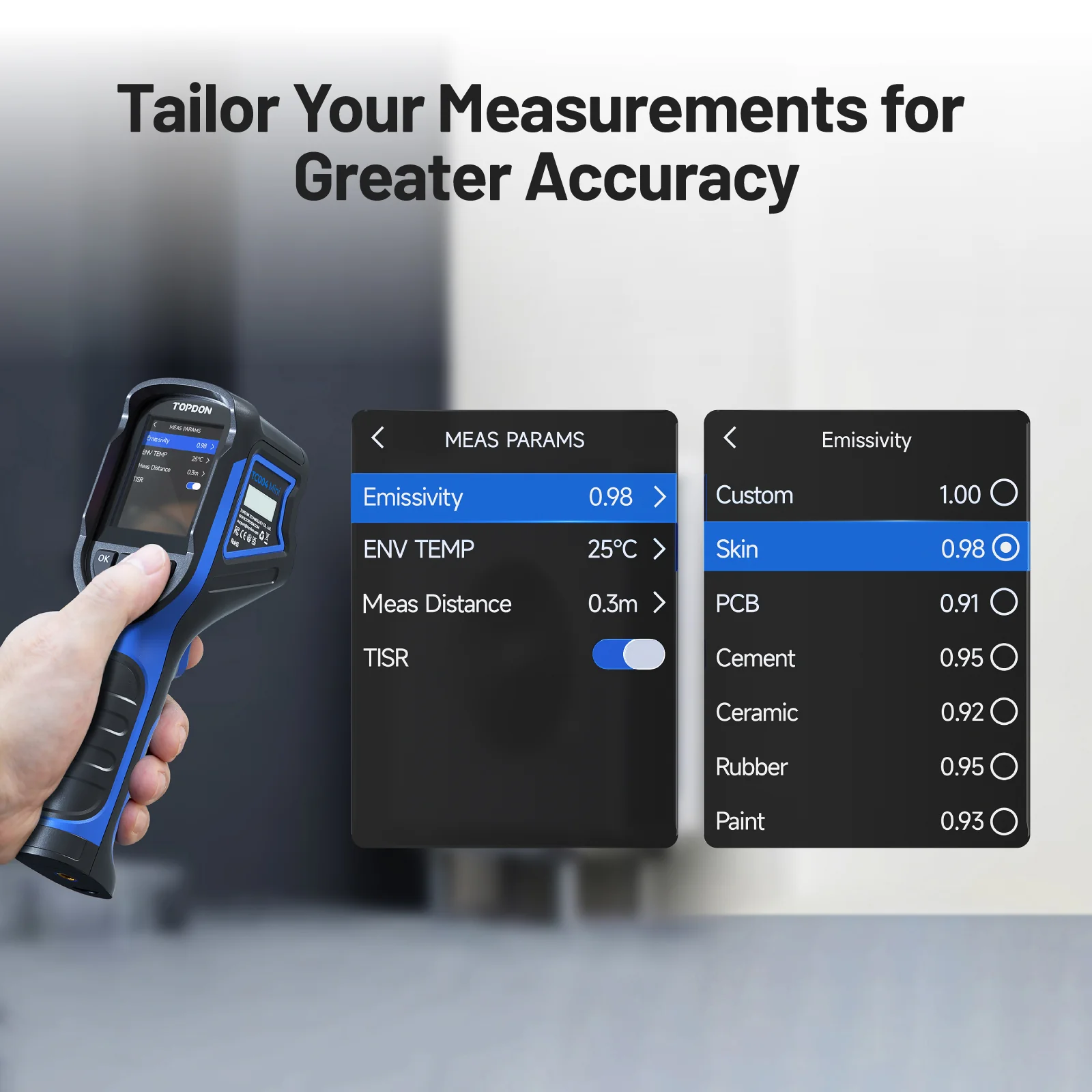

Tailor Your Measurements for Greater Accuracy

• Easily adjust object emissivity, measurement distance, and environment temperature for more precise thermal results.
• Note: Emissivity defines how well a target or material emits infrared radiation.

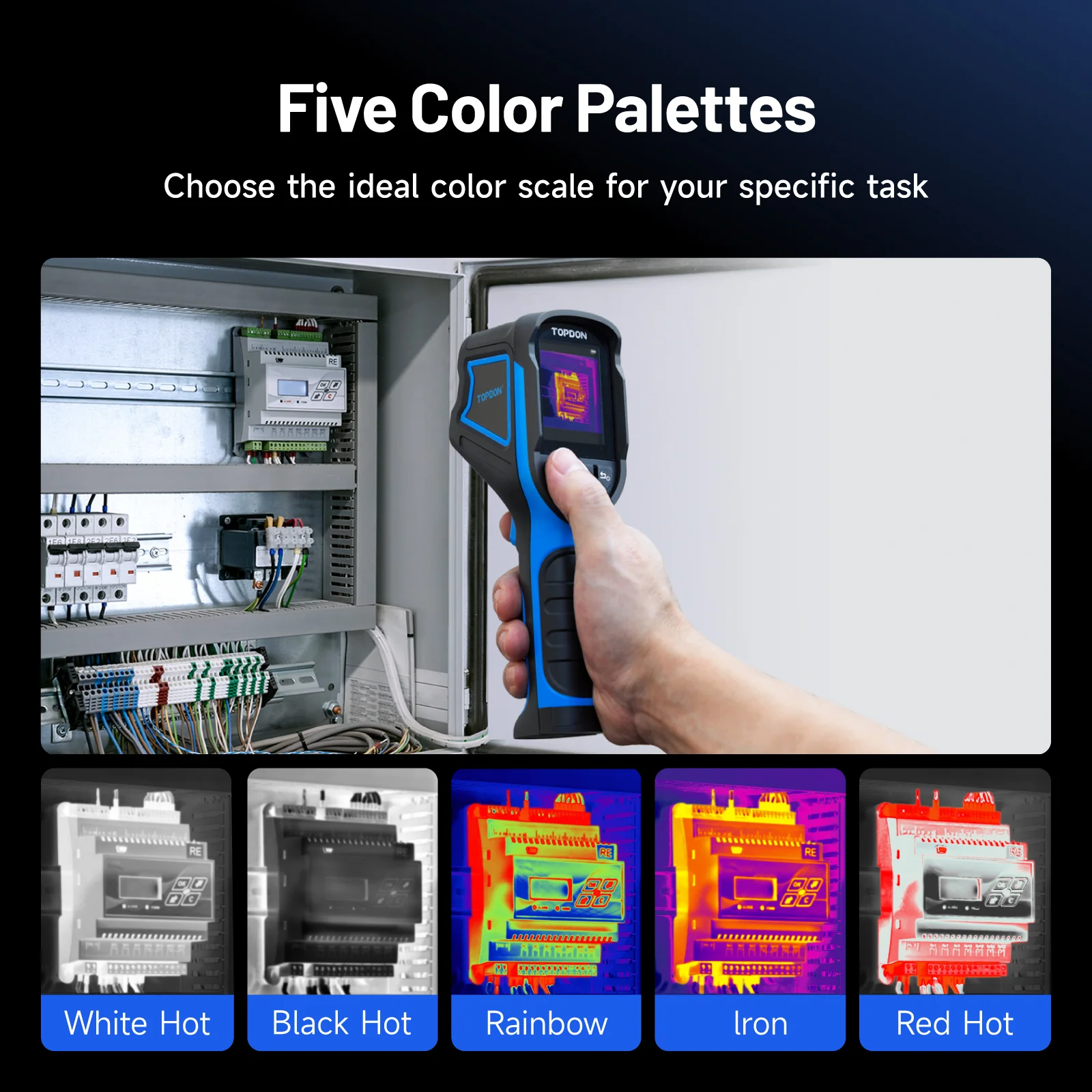

Versatile Color Options for Different Scenarios

• Choose from 5 color modes—White Hot, Black Hot, Iron, Rainbow, and Red Hot—to match your specific work needs, ensuring you spot hidden problems with ease.

Gear Up for Winter with Thermal Precision

• Home Energy Inspection

• HVAC Maintenance

• Water Leak Inspection

• Industrial Inspection

• Electrical Inspection

• Automotive Maintenance

Specifications

• IR Resolution: 128*128, improved to 240*240 by TISR

• Measurement Range: -4 ~ 842℉ ( -20 ~ 450°C)

• Refresh Rate: 25Hz

• Spectral Range: 8 to 14μm

• FOV: 40° x 30°

• Focal Length: 3.2 mm

• NETD: <40 mK

• Memory: 512MB

• Battery Life: 15h

• Battery Type: 2,900mAh built-in battery

• Protection Level: IP54

Packing List

• TC004 Mini Thermal Camera

• Hanging Strap

• USB-A to USB-C Cable

• Quick User Guide
